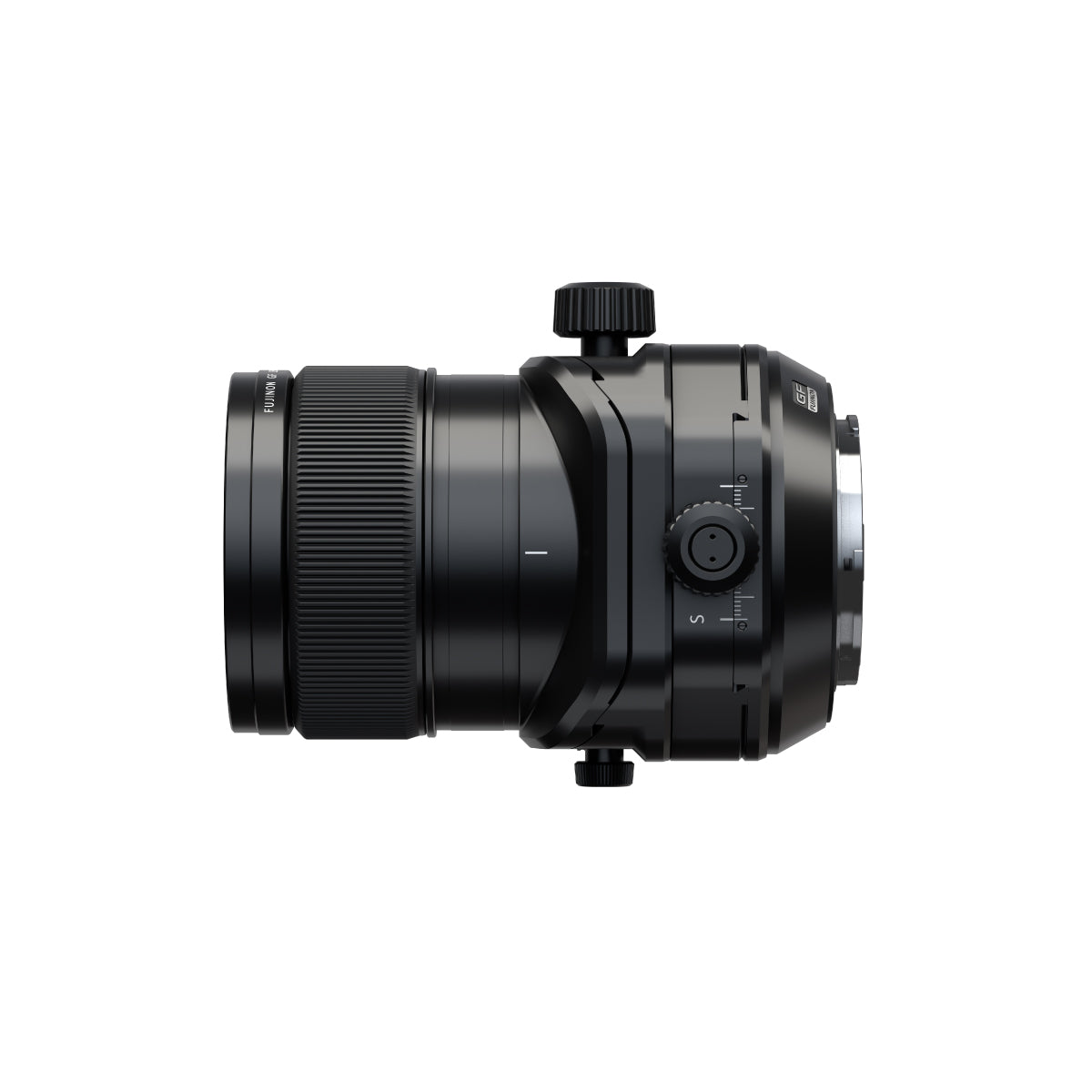

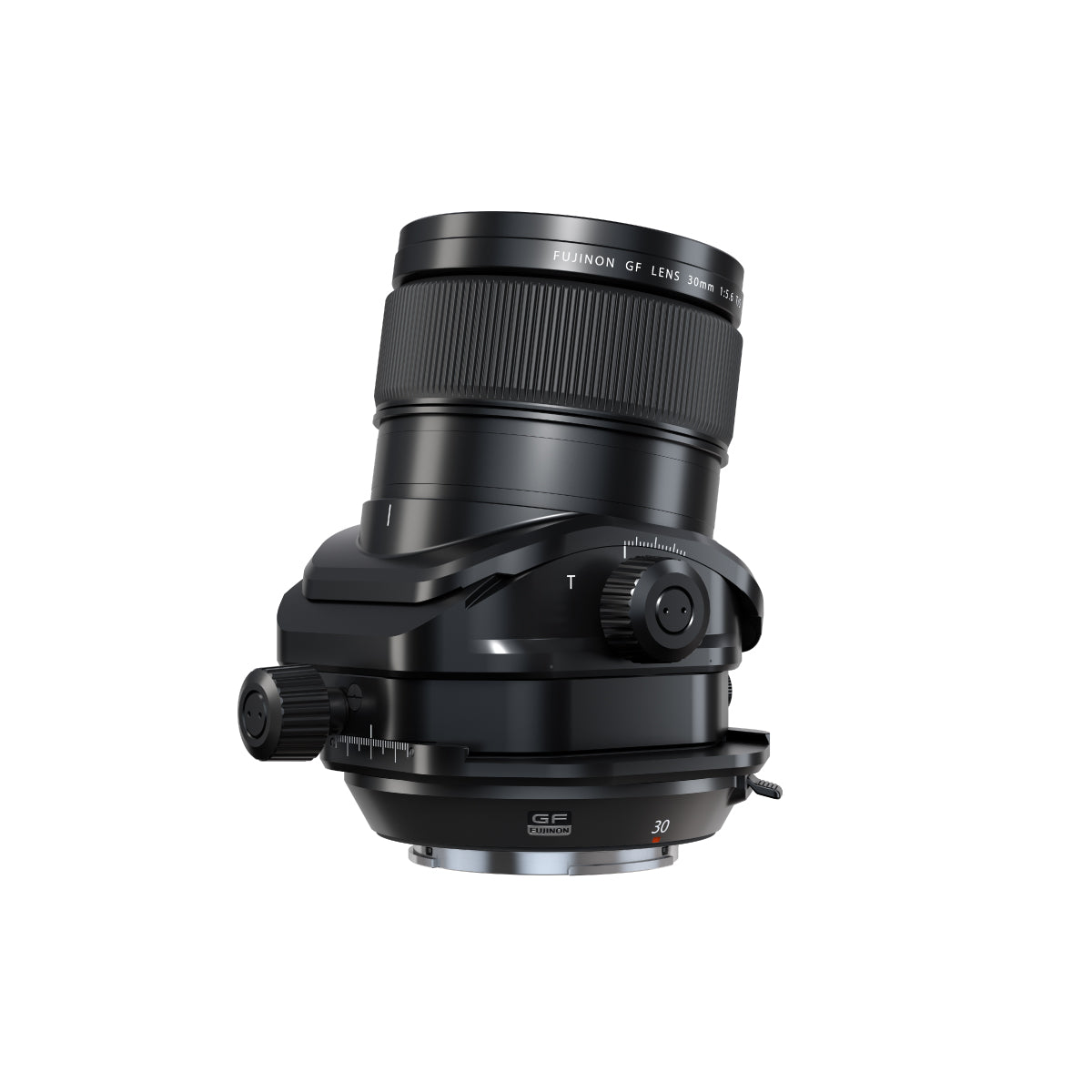

GF30mmF5.6 T/S
It is a small, medium format tilt/shift lens weighing only 1,340 grams, designed specifically for architectural and landscape photography. It can tilt ±8.5° and shift ±15mm, and has a sensor that can inform how much the lens is shifted and rotated. It uses 16 lens elements in 11 groups, including 2 ED lenses and 1 Super ED lens element for maximum sharpness from edge to edge of the image, even when tilting or shifting the lens.
The lens comes with a collar for easy use with a tripod. Nano GI lens coating reduces reflections and flare for the best quality.

Specifications
16 elements in 11 groups (includes 3 aspherical, 1 super ED and 2 ED elements)
f=30mm (24mm)
84.7˚
F5.6
F32
9 (rounded diaphragm opening)
1/3EV (16 steps)
0.3m
0.21x
±8.5˚
±15mm
Ruled in 1˚ increments
Ruled in 1mm increments
Locks at -90, 0, and 90 degrees
with a click every 30 degrees
Locks at 0 and 90 degrees
with a click every 45 degrees
Φ87.1mmx138.5mm
(The tilt/shift mechanism is 96 mm long)
1,340g
Φ105mm(uses adapter ring)
- Flont lens cap FLCP-77
- Rear lens cap RLCP-002
- Lens hood
- Adapter ring
- Adapter ring cap FLCP-105
- Tripod collar foot
- Lens pouch
